RF/Microwave Microstrip Circulator 2.7GHz-18GHz,1MHz to Full Bandwidth
|
|
| Model No.︰ | UIYMCxxxxA |
| Brand Name︰ | UIY |
| Country of Origin︰ | China |
| Minimum Order︰ | 1 pc |
|
|
|
|
|
|
|
|

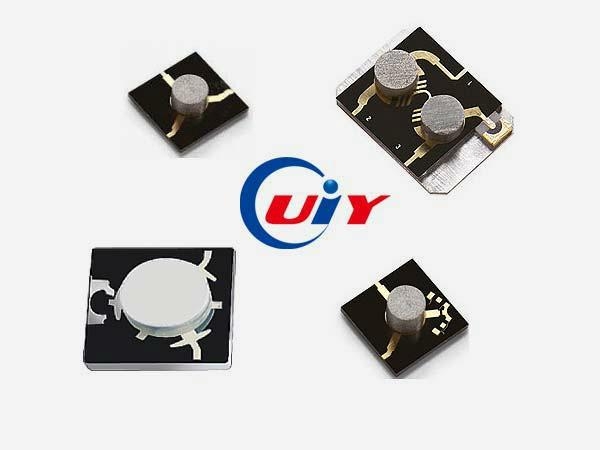

Microstrip Circulator
- Frequency Range 2.7-18GHz,1MHz to Full Bandwidth.
- Military, Space and Commercial Applications.
- Low insertion Loss,High Isolation,High power handling.
- Custom Design Available Upon Request.
| Part Number |
Freq.Range
(GHz) |
Band
Width
(MHz) |
Insertion
Loss
Max.(dB) |
Isolation
Min.(dB) |
VSWR
Max. |
FWD/REV
Powe(W) |
Size
L×W×H
(mm) |
Connector
Type |
Temp.Range
(°C) |
| UIYMC1519A |
2.7-3.6 |
200 |
0.4 |
20 |
1.2 |
10 |
15X32 |
Microstrip |
-30~+70 |
| UIYMC1618A |
3.3-4.5 |
300 |
0.4 |
22 |
1.2 |
10 |
16X18 |
Microstrip |
-30~+70 |
| UIYMC1518A |
4.4-5.0 |
Full |
0.4 |
20 |
1.2 |
10 |
15X18 |
Microstrip |
-30~+70 |
| UIYMC1214A |
4.2-5.5 |
400 |
0.5 |
20 |
1.2 |
10 |
12X14 |
Microstrip |
-30~+70 |
| UIYMC1212A |
5.5-8.5 |
200 |
0.3 |
23 |
1.15 |
10 |
12X12 |
Microstrip |
-30~+70 |
| 500 |
0.4 |
21 |
1.2 |
| 800 |
0.5 |
20 |
1.25 |
| 5.8-6.5 |
Full |
0.4 |
20 |
1.2 |
| 6.4-7.4 |
Full |
0.4 |
20 |
1.2 |
| 7.4-8.4 |
Full |
0.4 |
20 |
1.2 |
| UIYMC1010A |
8.0-13.0 |
400 |
0.4 |
23 |
1.2 |
10 |
10X10 |
Microstrip |
-30~+70 |
| 800 |
0.4 |
20 |
1.2 |
| UIYMC910A |
9.2-10.2 |
Full |
0.5 |
20 |
1.3 |
10 |
9X10 |
Microstrip |
-30~+70 |
| UIYMC813A |
10.5-13.0 |
Full |
0.5 |
20 |
1.3 |
10 |
8X13 |
Microstrip |
-30~+70 |
| UIYMC88A |
12.0-15.0 |
600 |
0.4 |
23 |
1.2 |
10 |
8X8 |
Microstrip |
-30~+70 |
| 1000 |
0.5 |
20 |
1.3 |
10 |
| UIYMC68A |
10.0-18.0 |
500 |
0.5 |
20 |
1.3 |
10 |
6X8 |
Microstrip |
-30~+70 |
|
|
|
|
|
|
